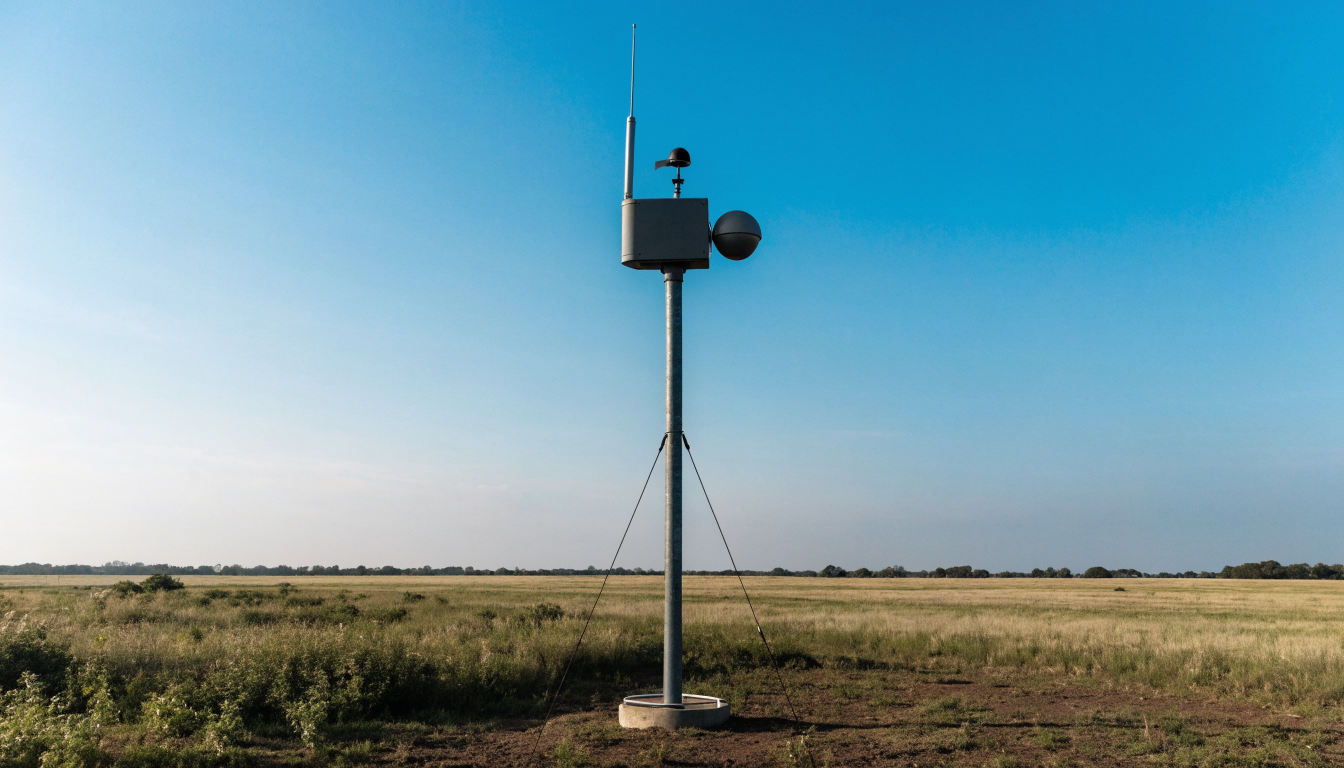

Weather Sensors
MetSensor UK supplies Zata IoT weather sensors to UK buyers building automatic weather stations, agricultural monitoring networks, aviation weather systems and smart city installations. The range covers compact all-in-one weather sensors, anemometers, rain gauges, solar radiation sensors, visibility and road sensors, ceilometers and agricultural sensors, each supplied with full specification data and UK-based support.
Products in this category

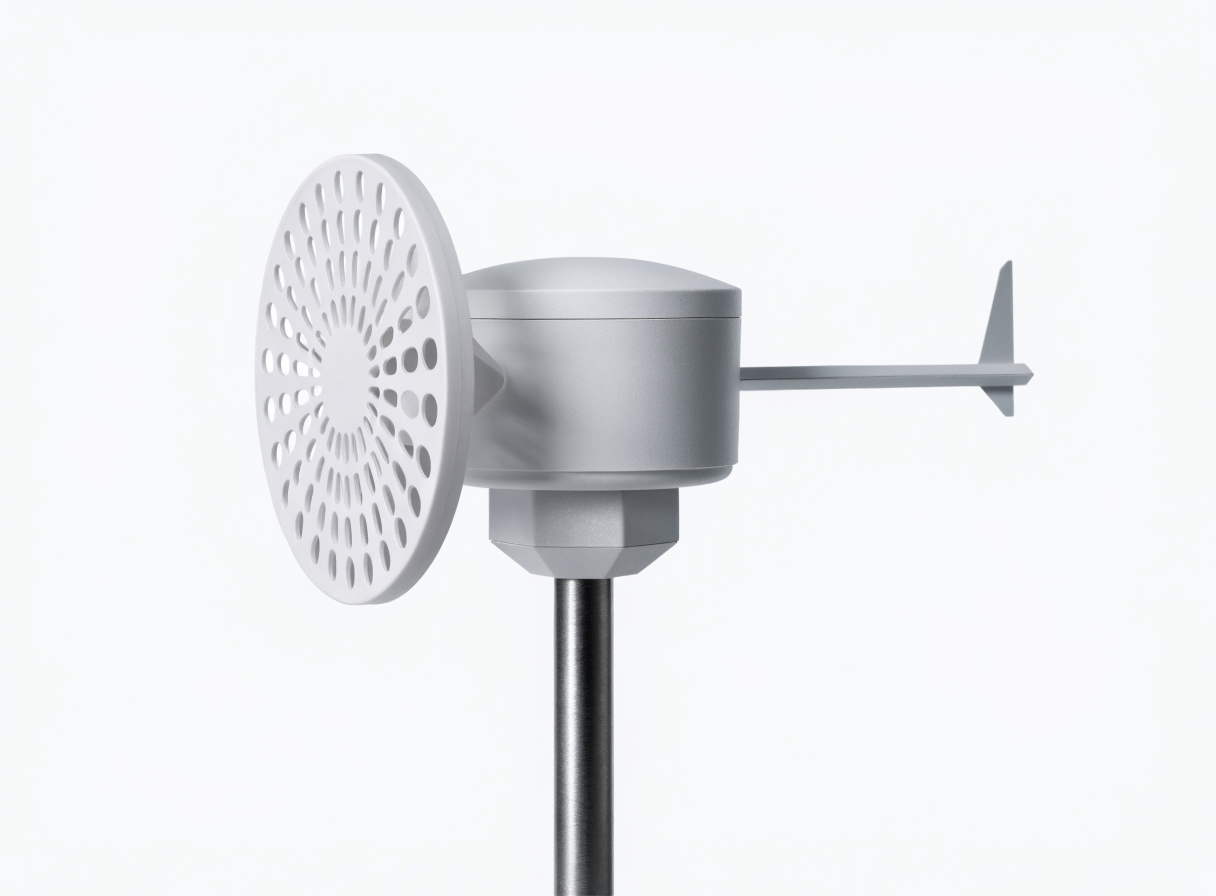

ZWS100 Piezoelectric Rain Sensor
ZWS100 (optional ZWS10G with GPS/4G)
The ZWS100 is a piezoelectric rainfall sensor that measures rainfall intensity from 0 to 10 mm/min at 0.01 mm resolution. It outputs data over RS485 as standard, with RS232, SDI-12, WiFi, Bluetooth, LTE, LoRa or NB-IoT available as options, and is available through MetSensor UK as a UK reseller of Zata IoT sensors.
ZWS640 All-in-One Compact Weather Sensor
ZWS640
The ZWS640 is an all-in-one compact weather sensor that measures wind speed, wind direction, temperature, humidity, pressure, rainfall, compass heading and acceleration in a single Ø110 mm x 245 mm housing. It is supplied in the UK through MetSensor UK, a Zata IoT reseller.
ZWS620 All-in-One Compact Weather Sensor
ZWS620 (optional ZWS62G with GPS/4G)
The ZWS620 is an all-in-one compact weather sensor that measures temperature, humidity, pressure, wind speed, wind direction, rainfall, compass heading and lightning strike activity. It is available in the UK through MetSensor UK, an official Zata IoT reseller.
ZWS800 All-in-One Compact Weather Sensor
ZWS800
The ZWS800 is an all-in-one compact weather sensor that measures temperature, humidity, pressure, wind speed, wind direction, rainfall, solar radiation, UV index and compass heading. It is supplied in the UK by MetSensor UK, a Zata IoT reseller.
ZWS700 All-in-One Compact Weather Sensor
ZWS700 (optional ZWS70G with GPS/4G)
The ZWS700 is an all-in-one compact weather sensor that measures temperature, humidity, pressure, wind speed, wind direction, rainfall, solar radiation, illumination and compass heading with high-resolution outputs. It is available through MetSensor UK in the UK.
ZWS400 All-in-One Compact Weather Sensor
ZWS400 (optional ZWS40G with GPS/4G)
The ZWS400 is a compact weather sensor that measures temperature, humidity, pressure, rainfall and compass heading without a wind channel, in a smaller Ø110 mm x 188 mm housing weighing 1.5 kg. It is available in the UK through MetSensor UK.
ZWS600 All-in-One Compact Weather Sensor
ZWS600 (optional ZWS60G with GPS/4G)
The ZWS600 is an all-in-one compact weather sensor that measures wind speed, wind direction, temperature, humidity, pressure, rainfall and compass heading in a single Ø110 mm x 245 mm housing. It is supplied in the UK by MetSensor UK.
ZWS500 All-in-One Compact Weather Sensor
ZWS500
The ZWS500 is a compact weather sensor that measures temperature, relative humidity, air pressure, wind speed, wind direction and compass heading without a rainfall channel. It is supplied in the UK by MetSensor UK.
ZWS300 All-in-One Compact Weather Sensor
ZWS300 (variants ZWS30C GPS/4G, ZWS30G LTE/WiFi/Bluetooth/LoRa)
The ZWS300 is a compact weather sensor that measures temperature, relative humidity, air pressure and electronic wind direction in a Ø110 mm x 185 mm housing weighing 1.2 kg. It is available in the UK through MetSensor UK.
ZWS Compact Weather Station (family overview)
ZWS series (ZWS200-ZWS800)
The ZWS series is a family of compact all-in-one weather sensors ranging from ZWS200 to ZWS800, sharing a common Ø110 mm housing format and differing in which parameters each model measures. MetSensor UK supplies the full ZWS series in the UK as a Zata IoT reseller.
ZWS200 Ultrasonic Anemometer / Wind Sensor
ZWS200
The ZWS200 is an ultrasonic anemometer that measures wind speed from 0-60 m/s and wind direction over 0-360°, with a response time of 1 second or less. It has no moving parts and is available through MetSensor UK in the UK.

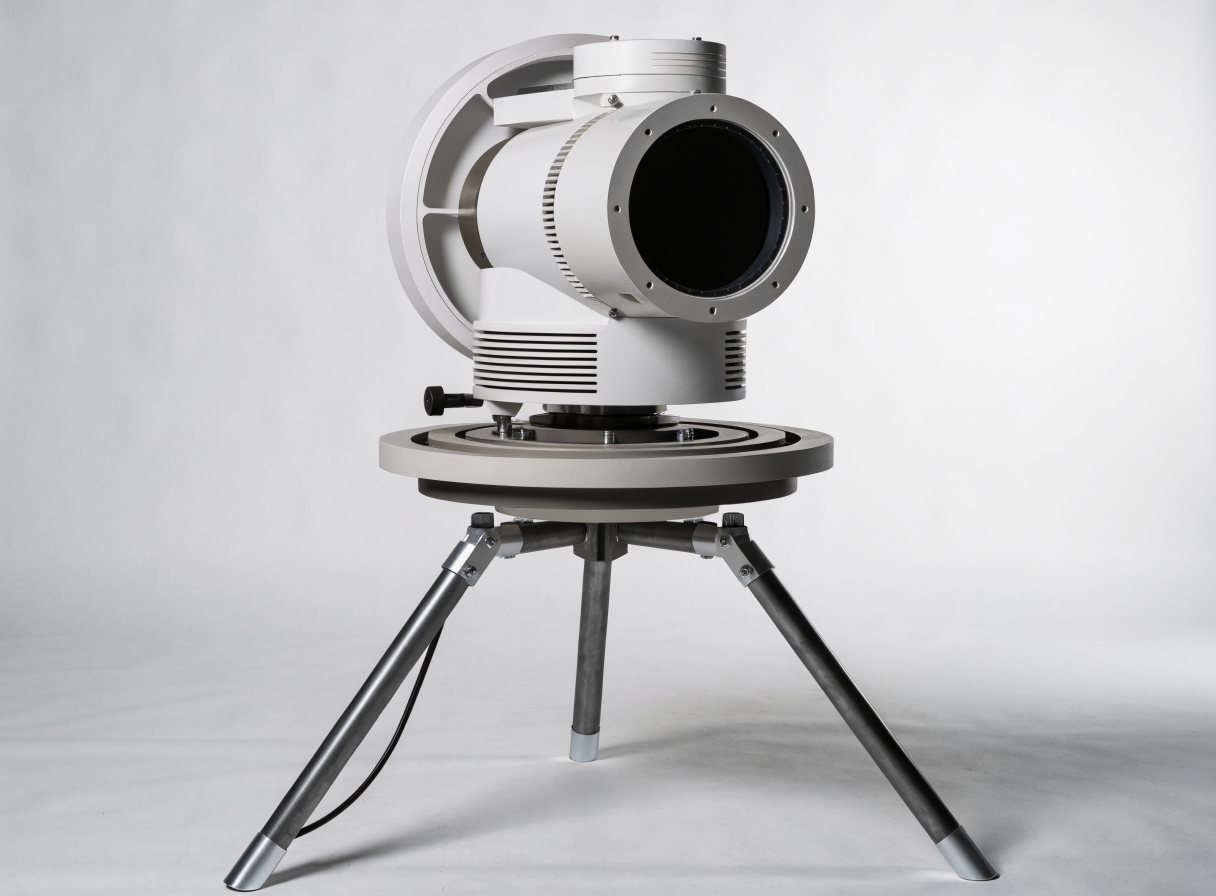

VWL 3D Scanning Doppler LiDAR
VWL
The VWL is a 3D scanning Doppler lidar that measures wind speed and direction at heights from 60 m to 6000 m by detecting the Doppler frequency shift of pulsed laser returns from the atmosphere. It uses an eye-safe 1550 nm wavelength and is supplied in the UK by MetSensor UK.

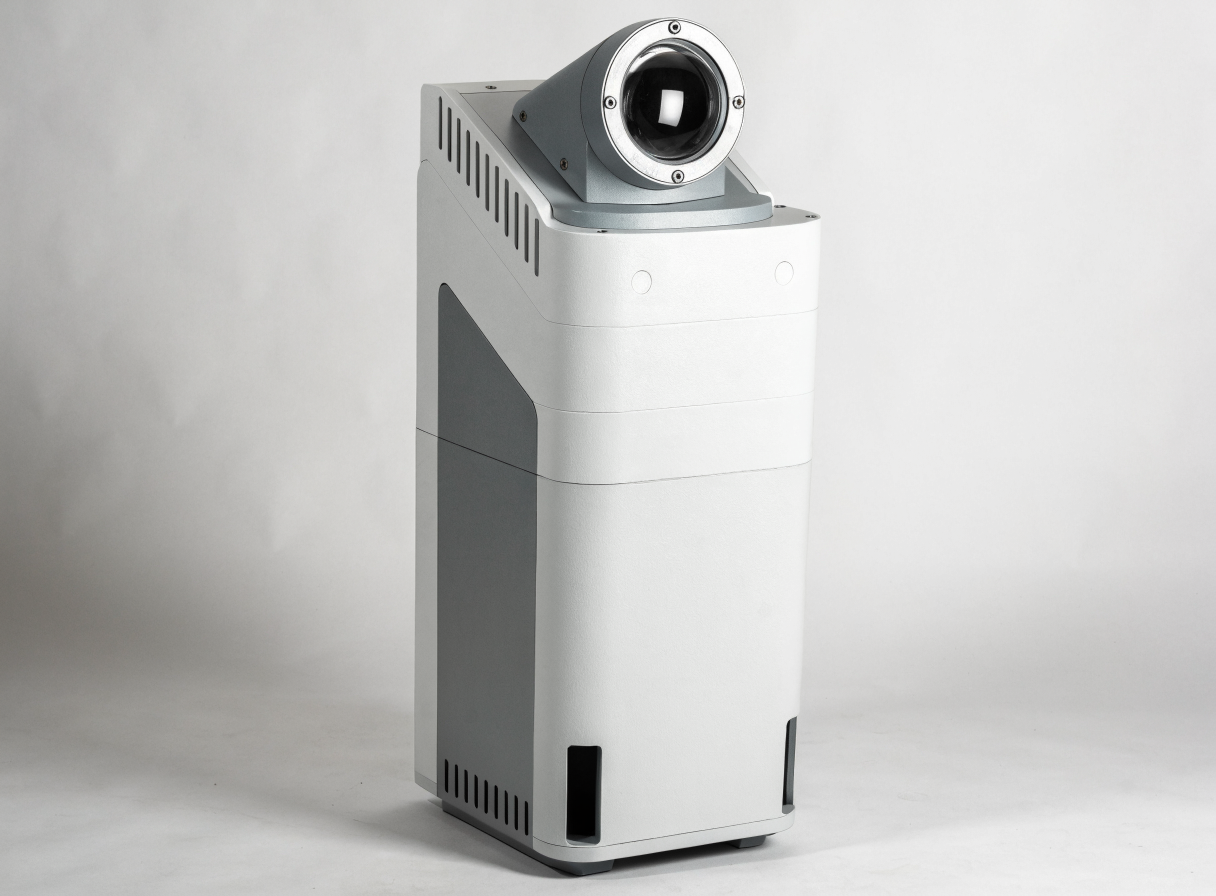

VWL550 Vertical Profiling Lidar
VWL550
The VWL550 is a pulse coherent wind lidar that profiles horizontal wind speed, wind direction, vertical wind speed, turbulence intensity and wind shear index from 30 m to 400 m above ground. It is supplied in the UK by MetSensor UK.

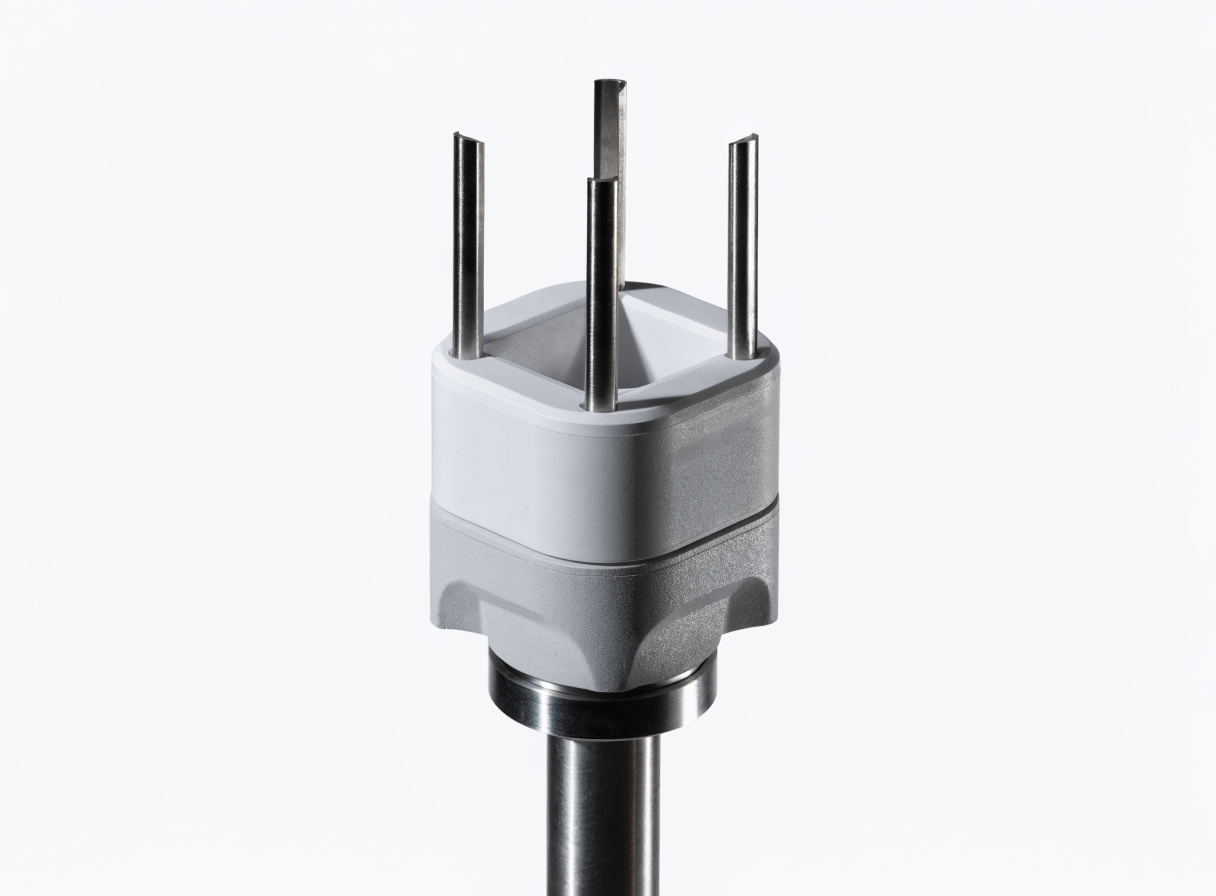

ZUA3 3D Ultrasonic Anemometer
ZUA3
The ZUA3 is a 3D ultrasonic anemometer that measures wind speed, wind direction, speed of sound, sonic temperature and U, V, W vector components, with an internal sample rate of 32 Hz. It is supplied in the UK by MetSensor UK.

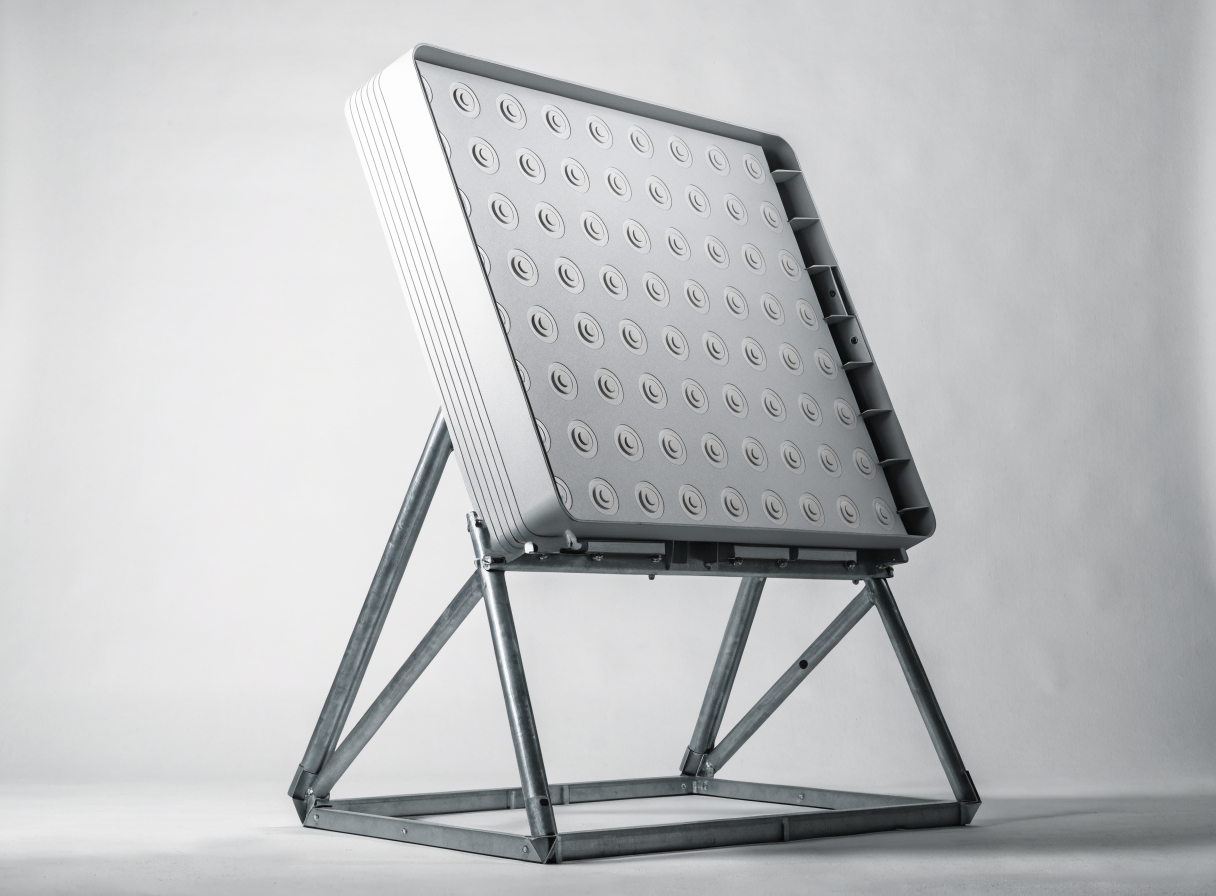

ZAS Doppler Sodar Wind Profiler
ZAS
The ZAS is a Doppler sodar wind profiler that measures wind speed and direction at up to 20 vertical levels between 10 m and 200 m using a piezoelectric acoustic transducer. It is supplied in the UK by MetSensor UK.

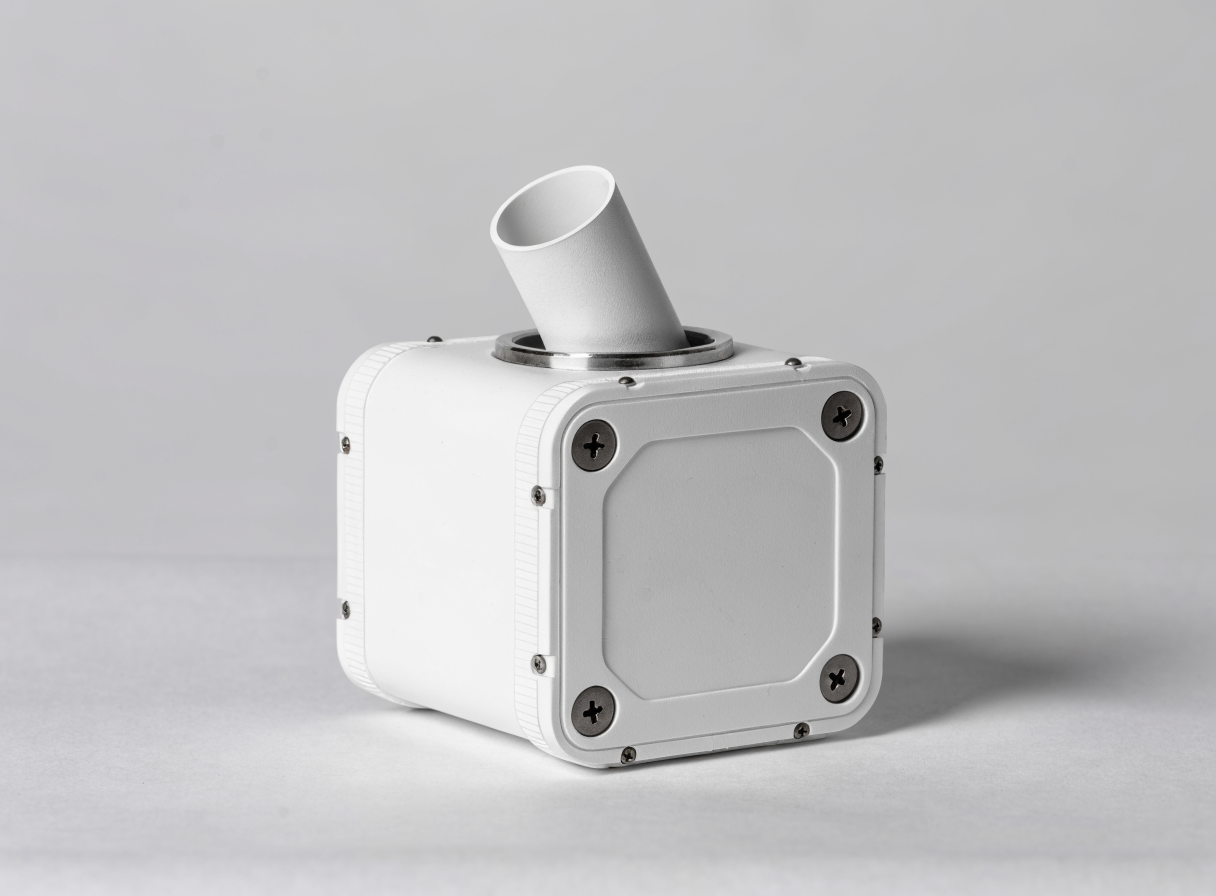

ZPA Barometric Altimeter
ZPA-1 / ZPA-2
The ZPA is a barometric altimeter available in two variants, ZPA-1 using a silicon piezoresistive element and ZPA-2 using a vibrating cylinder element, both measuring atmospheric pressure and derived altitude. It is supplied in the UK by MetSensor UK.

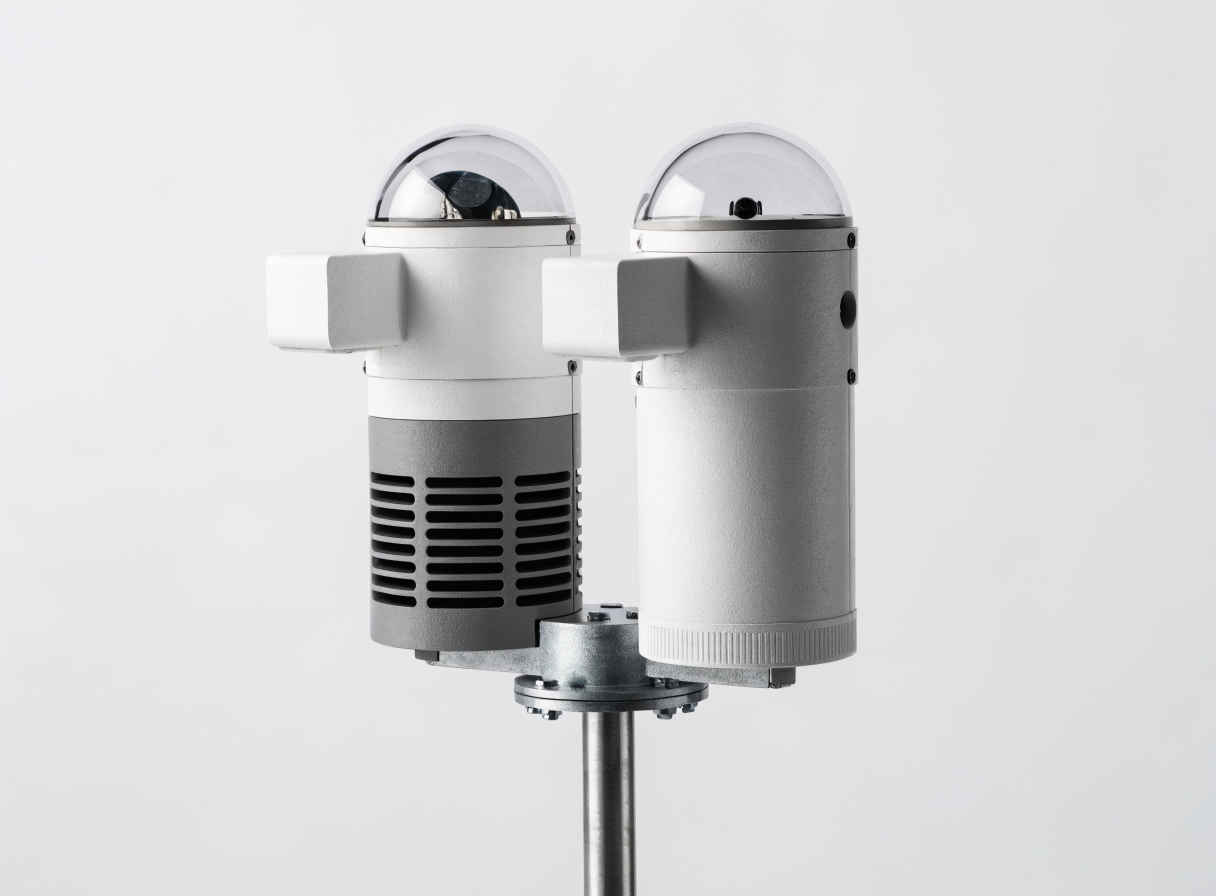

ZDM100 Disdrometer / Distrometer
ZDM100
The ZDM100 is a disdrometer that measures raindrop and precipitation particle size distribution, rainfall rate, precipitation intensity and type, horizontal visibility and radar reflectivity from a detection area greater than 60 cm². It is supplied in the UK by MetSensor UK.

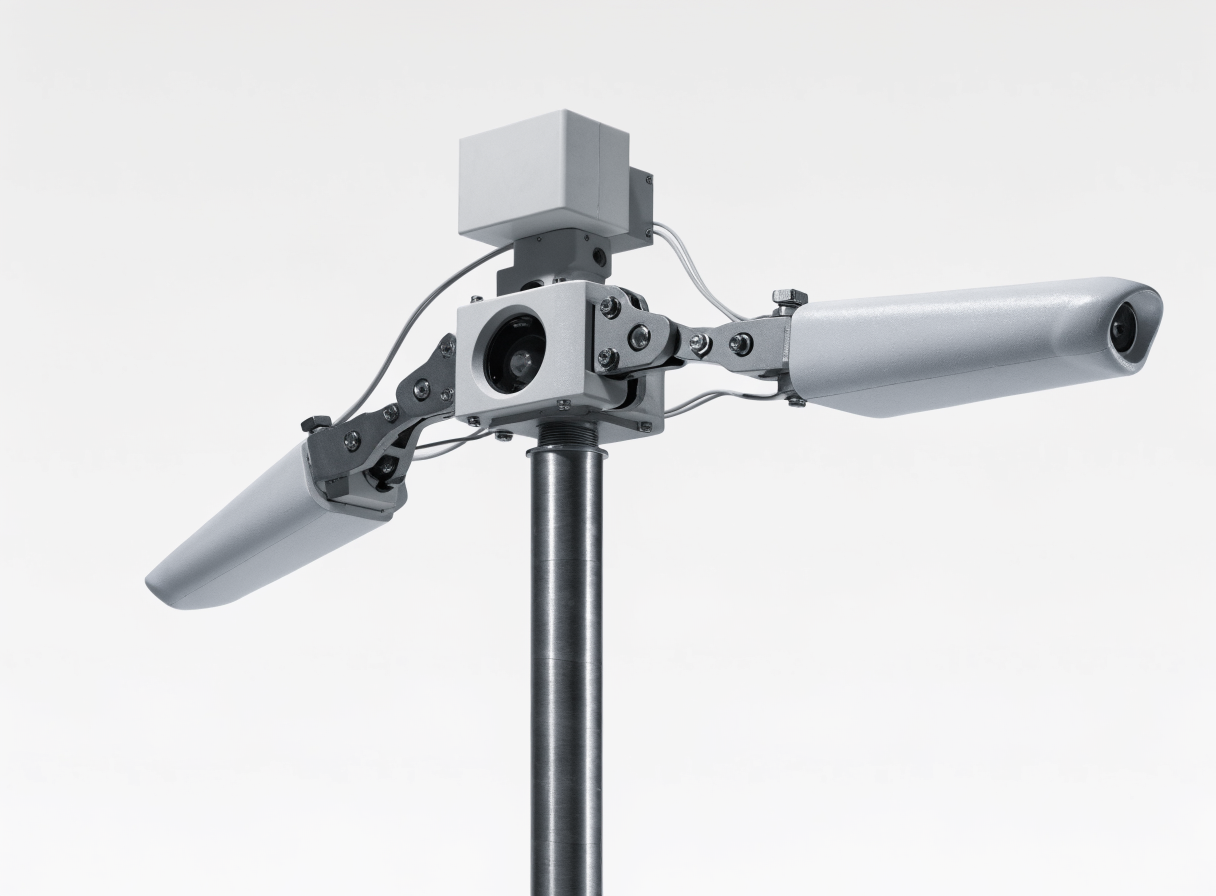

ZVS Visibility Sensor
ZVS100 / ZVS200 / ZVS300
The ZVS is a visibility sensor range available in three models: ZVS100 and ZVS200 use forward scattering, ZVS300 uses backscattering, covering measurement ranges from 5 m up to 30 km depending on model. It is supplied in the UK by MetSensor UK.

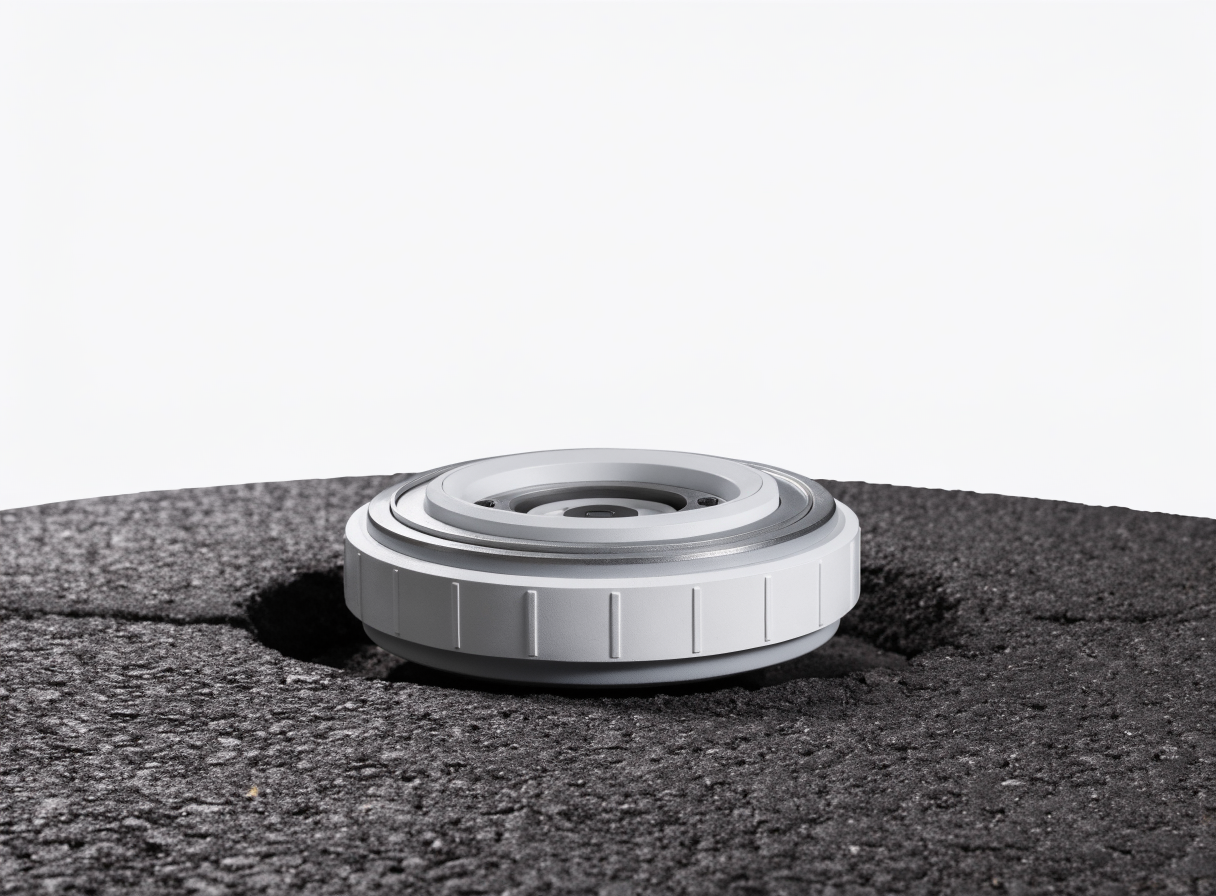

ZRS Road Sensor / Pavement Sensor
ZRS100
The ZRS100 is a non-contact infrared laser road sensor that measures pavement temperature, road surface state (water, ice, dry or snow), water thickness, ice thickness, snow depth and a slippery degree coefficient from a distance of 2-15 m. It is supplied in the UK by MetSensor UK.

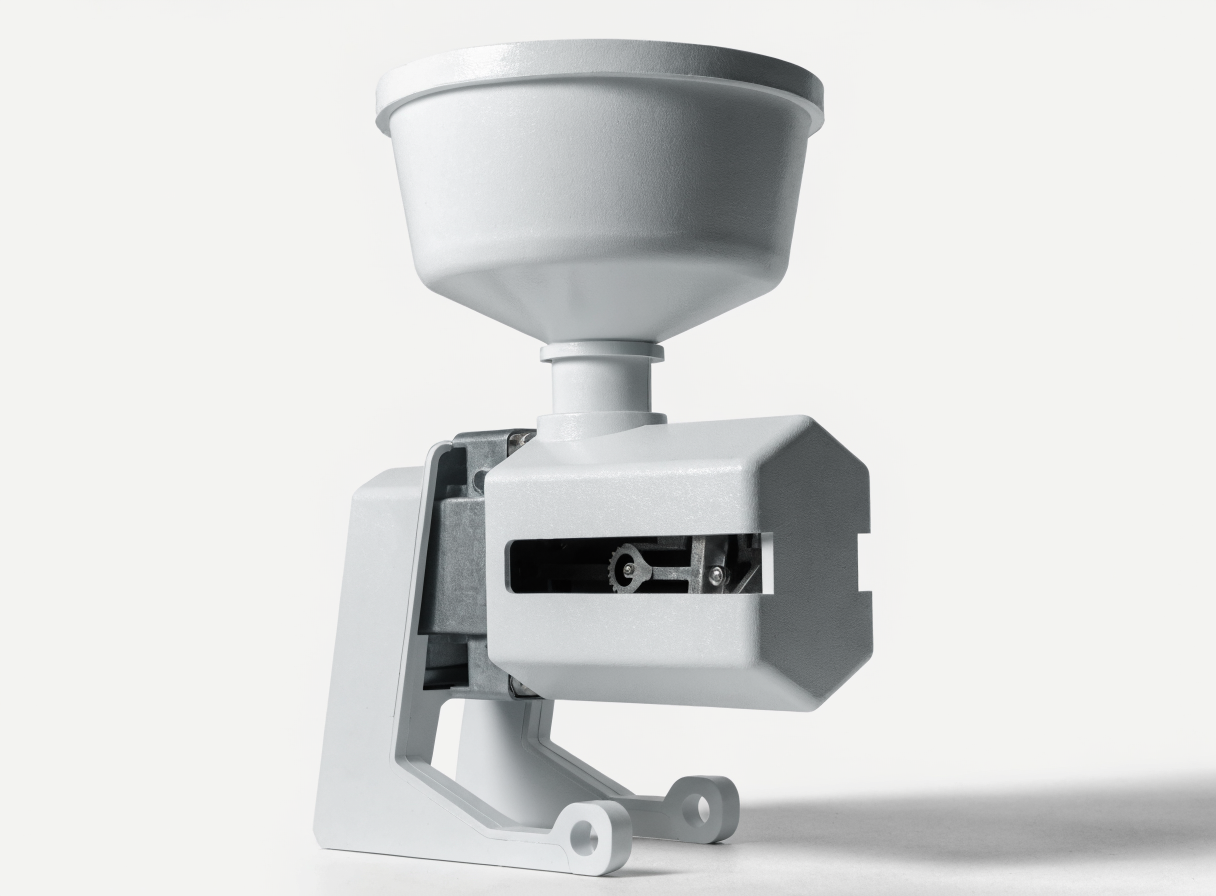

SL3-1 Tipping Bucket Rain Gauge
SL3-1
The SL3-1 is a tipping bucket rain gauge that measures rainfall from 0-4 mm/min at 0.1 mm resolution using a reed switch pulse output, in a Ø200 mm stainless steel funnel. It is a designated model of the China Meteorological Administration and is supplied in the UK by MetSensor UK.

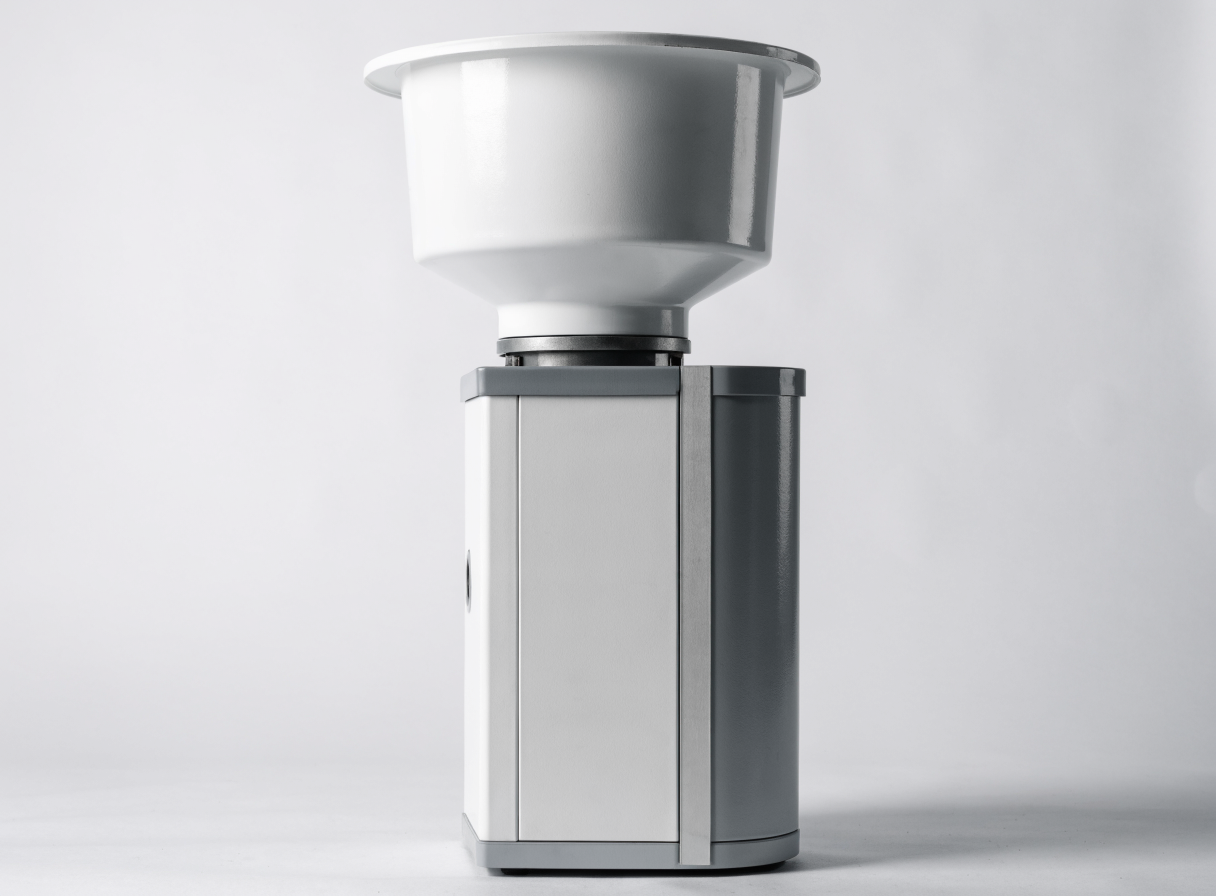

ZWR Weighing Rain Gauge
ZWR
The ZWR is a weighing rain gauge that measures rainfall intensity and evaporation using a weighing sensing principle over a range of 0-1000 mm, with automatic inverted-siphon drainage. It is supplied in the UK by MetSensor UK.
ZDR Tipping Bucket Rain Gauge
ZDR100 (also ZDR010, ZDR020, ZDR050 by resolution)
The ZDR100 is a tipping bucket rain gauge with a Ø200 mm stainless steel funnel, measuring rainfall from 0-4 mm/min at 1 mm resolution, with finer-resolution variants ZDR010, ZDR020 and ZDR050 also available. It is supplied in the UK by MetSensor UK.

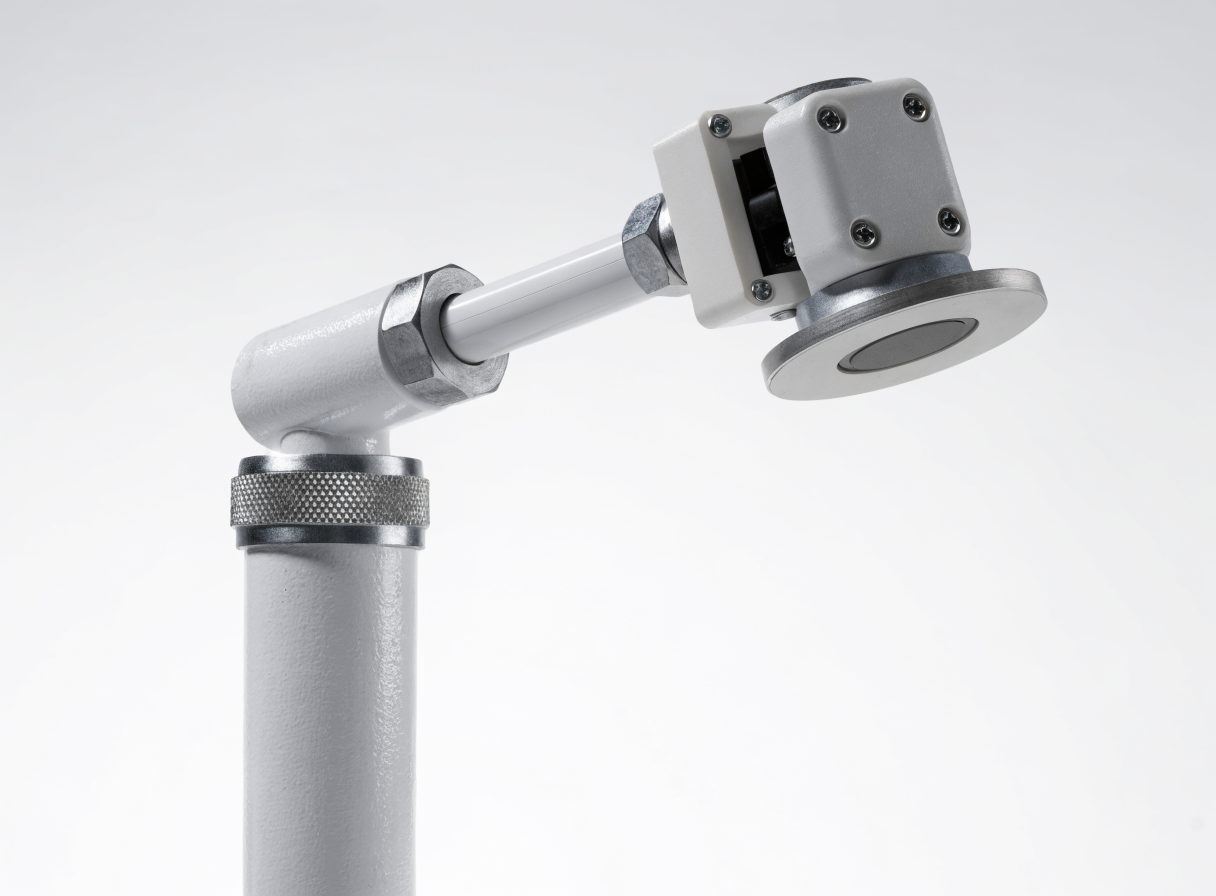

ZSU Ultrasonic Snow Depth Sensor
ZSU
The ZSU is an ultrasonic snow depth sensor that measures snow depth non-contact by acoustic ranging over a range of 0.4-10 m, with accuracy of ±5 mm and temperature-based sound velocity compensation. It is supplied in the UK by MetSensor UK.
TBS Pyrheliometer
TBS
The TBS is a pyrheliometer that measures direct solar radiation within a narrow viewing angle of approximately 0.5°, using a wire-wound electroplated thermoelectric stack across a spectral range of 0.3-3 μm. It is supplied in the UK by MetSensor UK.

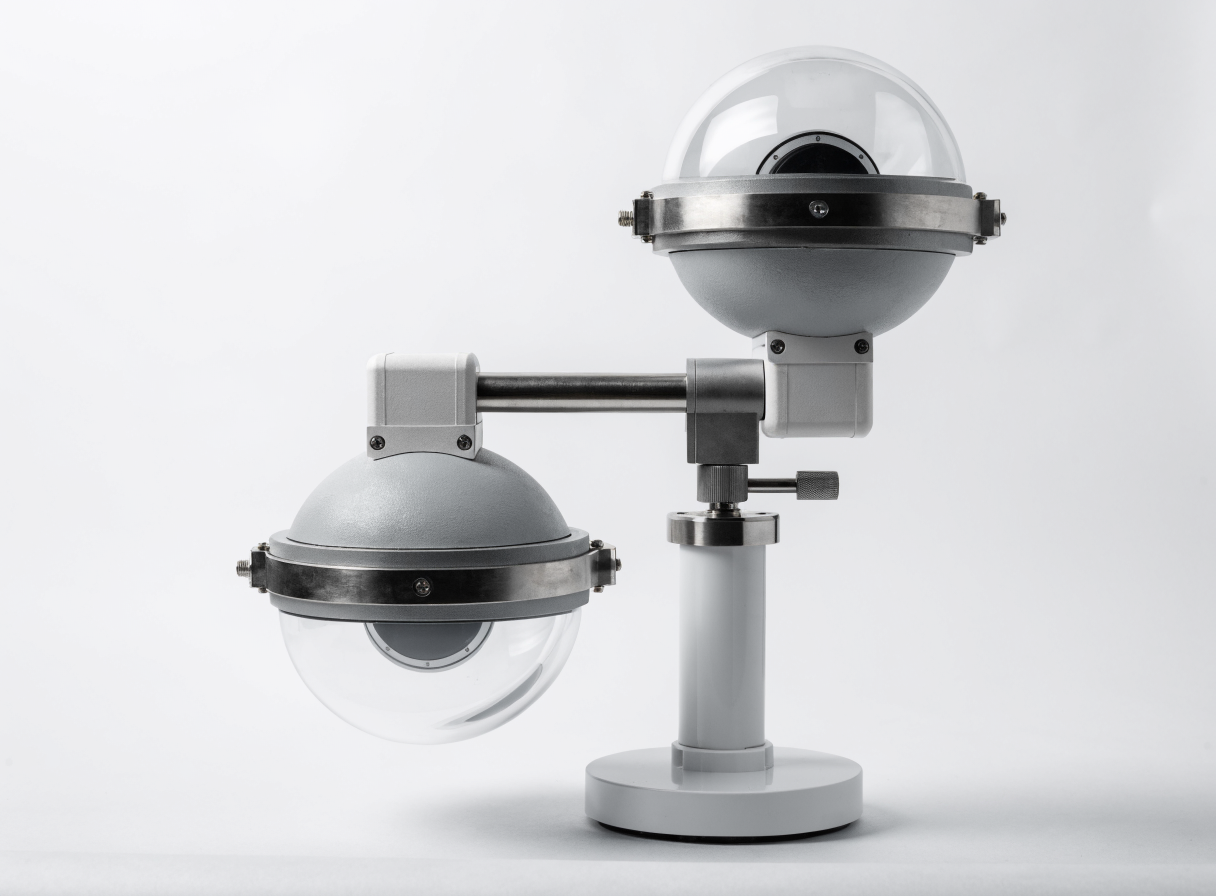

ZNR Net Radiometer
ZNR
The ZNR is a net radiometer that measures net radiation, the balance between incoming and outgoing radiation, across a spectral range of 0.3-100 μm using a thermopile sensor, requiring no external power. It is supplied in the UK by MetSensor UK.
ZDFD Pyrgeometer
ZDFD
The ZDFD is a pyrgeometer that measures infrared (long-wave) radiation over a spectral range of 4-50 μm with a 180° field of view, using a thermopile sensing element with a silicon arc light filter. It is supplied in the UK by MetSensor UK.

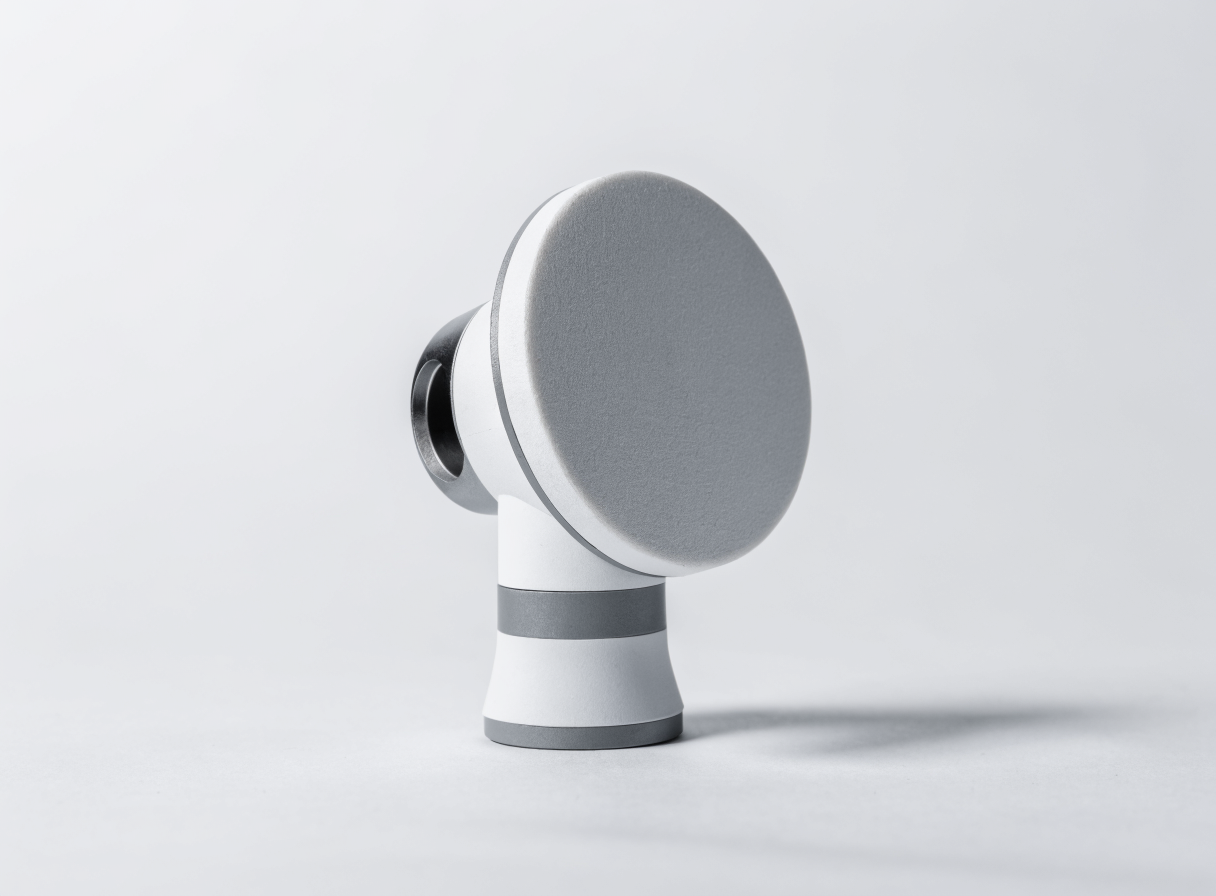

ZPAR Quantum Sensor
ZPAR
The ZPAR is a quantum sensor that measures photosynthetically active radiation (PAR) across the 400-700 nm spectral range using a silicon light detector with an optical filter, requiring no external power. It is supplied in the UK by MetSensor UK.
ZAB UV Radiometer
ZAB
The ZAB is a UV radiometer that measures ultraviolet radiation across the 280-400 nm spectral range, from 0-70 W/m², using a photoelectric detector and requiring no external power. It is supplied in the UK by MetSensor UK.
TBQ-2-B Pyranometer
TBQ-2-B
The TBQ-2-B is a pyranometer that measures total solar radiation, direct plus diffuse, across a spectral range of 0.3-3 μm using a wire-wound electroplated thermopile sensor, requiring no external power. It is supplied in the UK by MetSensor UK.
ZSHF-2 Soil Heat Flux Sensor
ZSHF-2
The ZSHF-2 is a soil heat flux sensor that measures the flow of heat through soil using a thermopile principle across dissimilar metals, over a range of ±100 W/m², requiring no external power. It is supplied in the UK by MetSensor UK.

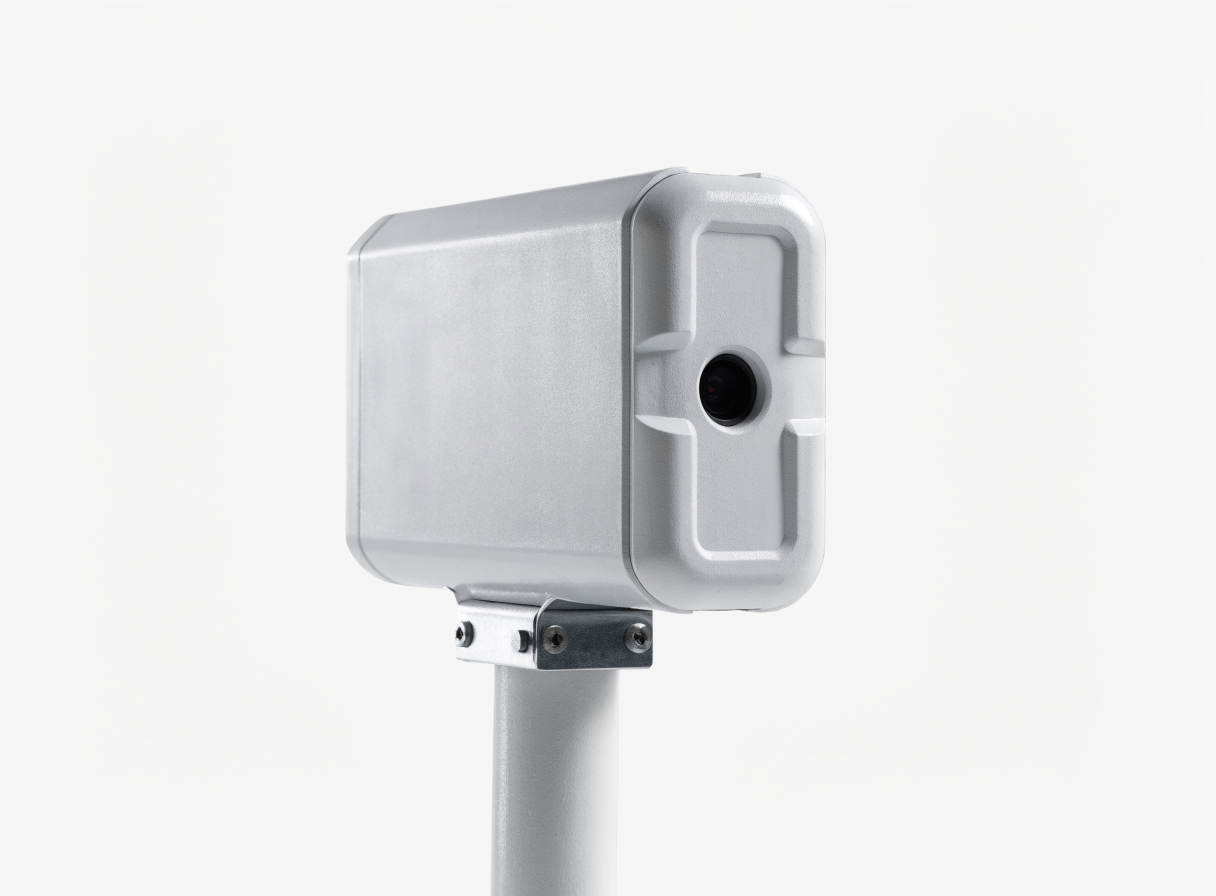

ZFD Fog Detector/Sensor
ZFD
The ZFD is a fog detector that measures atmospheric extinction coefficient, visibility and illuminance from 5 m up to 20 km using backscattering technology, in a compact 316L stainless steel housing. It is supplied in the UK by MetSensor UK.
ZSPH Soil pH Sensor
ZSPH
The ZSPH is a soil pH sensor that measures soil pH across a 0-14 range at 0.01 pH resolution alongside soil temperature from -40°C to 80°C, with RS485 Modbus, voltage and current output options. It is supplied in the UK by MetSensor UK.

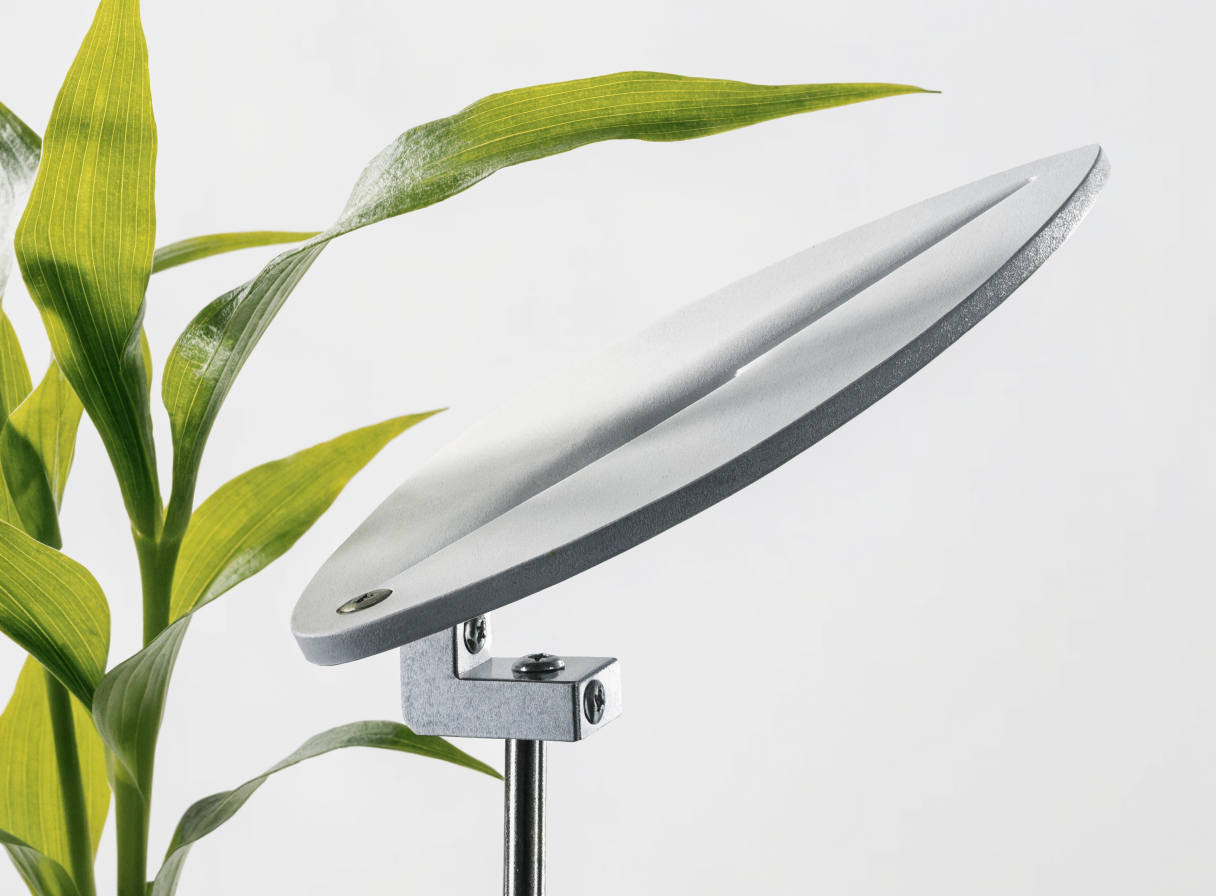

ZLW-2 Leaf Wetness Sensor
ZLW-2
The ZLW-2 is a leaf wetness sensor that detects moisture on plant canopies, including fog, ice, rain and dew, using a dielectric sensing principle, and also reports temperature. It is supplied in the UK by MetSensor UK.
ZSTM-3 Soil Sensor
ZSTM-3
The ZSTM-3 is a soil sensor that measures soil moisture, electrical conductivity (EC) and temperature from a single probe, using frequency domain reflectometry (FDR) for moisture and an AC bridge for EC. It is supplied in the UK by MetSensor UK.

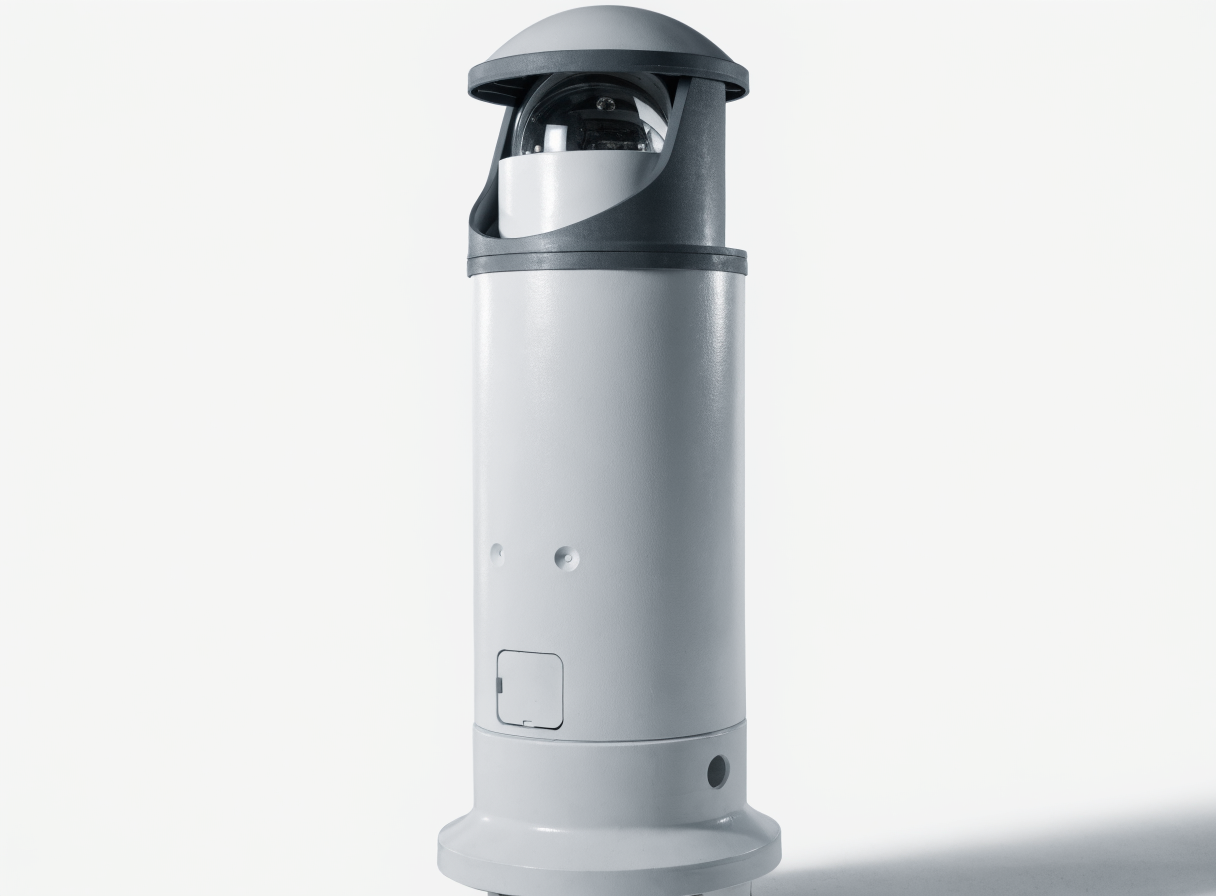

ZCL3 Ceilometer (Laser Lidar Ceilometer)
ZCL3
The ZCL3 is a laser lidar ceilometer that measures cloud height, cloud thickness, vertical visibility, boundary layer height and backscatter coefficient using 532 nm and 1064 nm laser sources, detecting up to 5 cloud layers. It is supplied in the UK by MetSensor UK.
What weather sensors measure
Weather sensors convert physical atmospheric or ground conditions into electronic signals that a data logger, controller or IoT platform can record. Depending on the sensor type, this includes wind speed and direction, air temperature, relative humidity, barometric pressure, rainfall intensity, solar radiation, UV index, visibility, cloud height, soil moisture and pavement condition. A single compact weather sensor such as the ZWS series can combine several of these parameters into one housing, while dedicated instruments such as pyranometers or disdrometers measure one parameter to a higher level of detail.
How the sensing technologies work
Each parameter uses a specific sensing principle. Wind speed and direction on the Zata ZWS and ZUA3 range use ultrasonic time-of-flight measurement between transducers, which has no moving parts and continues to operate in icing conditions where cup anemometers can seize. Rainfall is typically measured piezoelectrically (ZWS100, ZWS series) or with a tipping bucket mechanism (SL3-1, ZDR100), where each bucket tip generates a reed switch pulse proportional to a fixed volume of rain. Temperature and humidity use digital MEMS sensing elements, and pressure uses a silicon piezoresistive element. Solar radiation sensors use thermopile or silicon photodetector technology, and visibility sensors use forward-scattering or backscattering of an infrared beam to infer atmospheric extinction. Road and pavement sensors use non-contact infrared laser measurement to detect water, ice and snow film thickness.
Key specifications to compare
Buyers should compare five specification areas before selecting a sensor: measurement range (for example 0-60 m/s wind speed or 300-1150 hPa pressure), accuracy and resolution (for example ±0.3°C temperature accuracy at 0.1°C resolution), operating temperature range (Zata sensors typically operate from -40°C to +85°C, with some models extending to -60°C), communication interface (RS485 Modbus is the standard interface across the range, with RS232, WiFi, Bluetooth, LTE, SDI-12, LoRa and NB-IoT available as options on many models), and IP protection rating (IP66/IP67 for outdoor housings, IP68 for submerged or pressure-sensing components). Power supply also matters for remote sites: most Zata sensors run on DC 12/24V and accept solar power input, drawing under 15-20 mA at 12V in normal operation.
Typical applications and industries
Weather sensors from this range are used in hydrometeorological and meteorological standard stations, regional and research automatic weather stations, urban waterlogging and flood monitoring, smart city and smart street lighting projects, agricultural and forestry monitoring, wind power site assessment and turbine monitoring, transmission line and tower crane monitoring, airport meteorological observation (AWOS), highway and road weather information systems (RWIS), and marine and offshore installations. The specific application determines which sensor category and which combination of measured parameters is appropriate.
How to choose between models in this category
Start from the parameters you need to measure, not the model number. If you only need temperature, humidity, pressure and rainfall, a smaller compact sensor such as the ZWS400 covers that without paying for wind and radiation channels you will not use. If you need wind speed and direction plus the core four parameters, step up to the ZWS500 or ZWS600. If you also need solar radiation and UV index, the ZWS700 or ZWS800 add those channels. For dedicated wind measurement over a longer boom or at higher accuracy, the ZWS200 ultrasonic anemometer or the 3-axis ZUA3 are built specifically for that task. For precipitation type and intensity beyond a basic rain gauge, the ZDM100 disdrometer reports particle size distribution and precipitation type as well as rate. Match the communication interface to your existing data logger or telemetry system: RS485 Modbus is the common baseline, and cellular (LTE) or LoRa variants suit remote sites without wired infrastructure.
Buying weather sensors through MetSensor UK
MetSensor UK is a UK-based reseller of Zata IoT sensors, not the manufacturer. We supply the range shown on this site to UK buyers on a quote basis, matching sensor specification to your project requirements and communication infrastructure. Every specification published on this site is sourced directly from Zata IoT's own technical documentation. For pricing, lead times, and advice on which model fits a specific installation, contact MetSensor UK with your project details and we will confirm suitability against the published specifications before quoting.
Frequently asked questions
What is the difference between a compact weather sensor and separate individual sensors?+
A compact weather sensor such as the Zata ZWS series combines multiple measurement channels, for example wind speed, wind direction, temperature, humidity, pressure and rainfall, in a single housing with one mounting point and one communication interface. Separate individual sensors, such as a standalone anemometer or a standalone rain gauge, measure one parameter each and are mounted and wired independently. Compact sensors simplify installation; separate sensors allow replacing or upgrading one parameter without affecting the others.
What communication interface do these weather sensors use?+
RS485 with Modbus protocol is the standard interface across the Zata IoT range. Many models also offer RS232, SDI-12, WiFi, Bluetooth, LTE, LoRa or NB-IoT as optional interfaces, so the sensor can connect to a range of data loggers, PLCs or IoT gateways.
Can these sensors run on solar power?+
Yes. Most sensors in this range accept DC 12/24V input and are compatible with solar power supply, with typical current draw under 15-20 mA at 12V, which suits remote or off-grid monitoring sites.
What operating temperature range do the sensors cover?+
Most sensors in the range operate from -40°C to +85°C. Some models, including the ZWS compact weather station family, are rated down to -60°C, and specific instruments such as the ZAB UV radiometer are rated to -50°C to +100°C. Exact figures vary by model and are listed on each product page.
What IP rating do the outdoor sensor housings have?+
Outdoor sensor bodies are typically rated IP66 or IP67, with pressure-sensing components rated IP68 where listed. This allows the sensors to be mounted outdoors and exposed to rain and dust without additional enclosures.
Does MetSensor UK manufacture these sensors?+
No. MetSensor UK is a UK reseller and distributor of Zata IoT sensors. The sensors are manufactured by Zata IoT; MetSensor UK supplies them to UK buyers with UK-based support and quote-based pricing.
How do I know which sensor model to choose for my project?+
Start by listing the parameters you need to measure, for example wind speed, rainfall, or solar radiation, then compare the measurement range, accuracy and communication interface listed on each product page against your project requirements. Contact MetSensor UK with your project details if you need help matching a model to your application.
Are these sensors suitable for agricultural monitoring?+
Yes. The range includes sensors designed specifically for agriculture, such as the ZSPH soil pH sensor, ZLW-2 leaf wetness sensor and ZSTM-3 soil moisture, EC and temperature sensor, alongside compact weather sensors used for general field weather monitoring.
